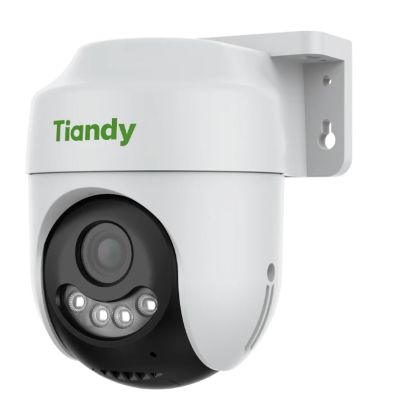

Tiandy TC-H333K 3MP Color Maker Wi-Fi PT Camera
Model: TC-H333K Spec:AK/I5W/WIFI/4mm
The Tiandy TC-H333K is a 3MP Wi-Fi pan-and-tilt IP camera featuring a fixed 4mm lens, infrared illumination, white-light illumination, auto-tracking, built-in microphone and speaker, and support for microSD storage up to 256GB.
Key Features
- 3MP resolution: 2304 × 1296 at up to 20fps
- Color minimum illumination of 0.001 lux
- Fixed 4mm lens with 86.8° horizontal field of view
- Pan-and-tilt adjustment with auto-tracking
- Infrared night vision up to 30 metres
- White-light illumination up to 15 metres
- Wi-Fi connectivity using IEEE 802.11b/g/n
- Built-in microphone and loudspeaker
- microSD, microSDHC and microSDXC support up to 256GB
- IP66 protection rating
Technical Specifications
| Camera | |
|---|---|
| Image Sensor | 1/2.8" CMOS |
| Minimum Illumination | Color: 0.001 lux @ F1.6, AGC ON; B/W: 0 lux with IR |
| Shutter Time | 1s–1/100000s |
| Day/Night | IR-cut filter with automatic switch (ICR) |
| Smart IR | Yes |
| WDR | DWDR |
| Signal-to-Noise Ratio | Greater than 48dB |
| Angle Adjustment | 0–345°; 0–90° tilt |
| Lens | |
| Lens Type | Fixed focal lens |
| Focal Length | 4mm |
| Lens Mount | M12 |
| Aperture | F1.6, fixed |
| Field of View | Horizontal: 86.8°; Vertical: 46.1°; Diagonal: 99.7° |
| DORI Distance | Detect: 65.31m; Observe: 25.92m; Recognize: 13.06m; Identify: 6.53m |
| Pan & Tilt | |
| Pan Speed | 30°/s |
| Tilt Speed | 25°/s |
| Preset Positions | 255 |
| Illuminator | |
| IR LEDs | 4 |
| IR Distance | Up to 30m |
| IR Wavelength | 850nm |
| White LEDs | 4 |
| White-Light Distance | Up to 15m |
| Red and Blue Alarm Flash | Yes |
| Video & Image | |
| Video Compression | S+265 / H.265 / H.264B / H.264M / H.264H |
| Video Bit Rate | 32k–4Mbps |
| Maximum Resolution | 3MP, 2304 × 1296 @ 20fps |
| Main Stream | PAL: 20fps at 2304×1296, 1920×1080, 1280×720, 640×480, 704×576. NTSC: 20fps at 2304×1296, 1920×1080, 1280×720, 640×480, 704×480. |
| Sub Stream | PAL: 704×576, 704×288, 640×360, 352×288, 800×488 at 20fps. NTSC: 704×480, 704×240, 640×360, 352×240, 800×488 at 20fps. |
| BLC / HLC / AGC | Supported |
| 3D DNR | Yes |
| White Balance | Auto, Semi-Auto, Manual, Sunshine, Nature Light, Warmlight Lamp, Daylight Lamp, Filament Lamp, Lock White Balance |
| OSD | Overlay of additional characters in 1 region, 1 line; maximum 48 characters or 16 Chinese characters per region; 16×16 / 32×32 / 48×48; Lattice |
| Privacy Mask | 4 black static areas |
| Defog | Yes |
| Features & Analytics | |
| Video Analytics | Smart Alarm |
| Auto-Tracking | Yes |
| Exception Alarms | Disk Full, Disk R/W Error, IP Address Conflict, Network Disconnection |
| Linkage Methods | Trigger Sound, Trigger Warmlight, Trigger Recording, Trigger Capture |
| Network & Wi-Fi | |
| ANR | Yes |
| Protocols | RTSP, HTTP, TCP, UDP, ICMP, DHCP, DNS, NTP, TLS v1.2, IPv4, SSH, Unicast |
| System Compatibility | ONVIF Profile S/T, SDK, CGI, Milestone |
| Remote Connections | Up to 2 |
| Client Software | Easy7 VMS |
| Mobile Client | EasyLive Plus |
| Web Browsers | IE10+, Firefox 52+, Edge 89+, Safari 11+, Chrome 57+ |
| Wi-Fi Standard | IEEE 802.11b / 802.11g / 802.11n |
| Wi-Fi Transmission Distance | Up to 30m, depending on the actual environment |
| Frequency Range | 2.4GHz–2.4835GHz |
| Channel Bandwidth | 20 / 40MHz |
| Wi-Fi Security | WPA-PSK / WPA2-PSK |
| Interfaces & Storage | |
| Network Interface | 1 × RJ-45, 10/100 Base-T |
| Built-in Microphone | 1 |
| Built-in Speaker | 1 loudspeaker |
| Audio Compression | G.711A / G.711U |
| Audio Sampling Rate | 8kHz / 16kHz |
| Reset Button | Yes |
| On-board Storage | microSD / microSDHC / microSDXC, up to 256GB |
| General | |
| Web Client Languages | Simplified Chinese, English, Vietnamese |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Operating Humidity | ≤95% RH |
| Storage Temperature | -30°C to 60°C (-22°F to 140°F) |
| Storage Humidity | 10%–95% RH, non-condensing |
| Power Supply | DC 12V ±25%, maximum 12W |
| Protection | IP66; surge protection 4000V; ESD protection 6000V |
| Product Dimensions | 104.5(L) × 125.5(W) × 140(H)mm |
| Package Dimensions | 135(L) × 135(W) × 190(H)mm |
| Gross Weight | 0.53kg |
Specifications are based on the supplied Tiandy product information. Please confirm compatibility, Wi-Fi range and storage card requirements before installation.
