Network standards
IEEE802.3、 IEEE802.3u、 IEEE802.3ab、 IEEE802.3z、 IEEE802.3x、 IEEE802.3af/at、IEEE802.1p、IEEE802.1q、 IEEE802.1w、 IEEE802.1d、 IEEE802.1s
LED Indicator1*Link/Act or PoE LED indicator
1*Link/1*Link/Act mode converting LED indicator
1*PoE mode converting LED indicator
1*PoE Max LED indicator
1*Power LED indicator
1*SYS LED indicatorInterfaces24*10/100/1000 Base-T Ethernet ports
4*1000 Base-X SFP ports
1*Console portTransmission mediaRecommended: CAT5/5e UTP or better
Fan quantity2
Level of protectionLightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kVForwarding modeStore-and-forward
Switch capacity56Gbps
Packet forwarding rate41.70Mpps
Buffer12Mb
MAC address table16K
Jumbo frame10K
PoE power supply managementSupport
PoE budgetSingle port: AF: 15.4W, AT: 30W
Whole device: 370WInput voltage100-240V AC 50/60Hz
Power consumptionFull load: ＜432W
Empty load: ＜23WDimension440.0mmx284.0mmx44.0mm
MountingDesktop mounting: support
Wall mounting: support
Rack mounting:non-supportEnergy EfficientSupport
EnvironmentOperating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%)
RH, non-condensing
Storage humidity: (5% - 90%)
RH, non-condensingCertificationFCC、CE、RoHS
-
L3 Features
Supports VLAN-based routing
Supports IPv4/IPv6 static routing
Supports static ARPPoE power supply managementSupports port PoE configuration and power supply with priority
Supports PoE over-temperature protection
Supports PoE scheduled management
Supports intelligent management and PoE-powered device detection
(port status, power assignment and PoE-powered device status)Security featuresARP receiving limit
Unknown MAC address discard
DoS attack defense
802.1x security authentication
Radius security authenticationVLANIEEE 802.1Q VLAN
VLAN Layer-3 interfaces
Supports three port modes: Access, Trunk and HybridDHCP ServerDHCP Relay
DHCP Snooping
Supports Option 82 policy configurationPort aggregationStatic aggregation
LACP dynamic aggregationSpanning treeIEEE 802.1d STP (Spanning Tree Protocol)
IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
Supports edge port
Supports BPDU statisticsMulticastIGMP Snooping V1/V2/V3
Supports port fast leavePort MirroringSupports N: 1 port mirroring
Quality of ServiceSP (Strict Priority)
SWRR (Simple Weighted Round Robin)
WRR (Weighted Round Robin)
Supports 802.1p port trust mode
Supports DSCP port trust mode
Supports a maximum of 8-queue service quality mappingACLSupports MAC ACL and IP ACL
Loading and upgradeSupports FTP/TFTP/HTTP upgrade
Supports configuration import and exportManagement and maintenanceSupports Telnet, Console
Supports SNMP V1/V2/V3
Supports WEB management and maintenance
Supports Ping/IPv6/Tracert/Connection Detection
CPU Monitoring and memory monitoring

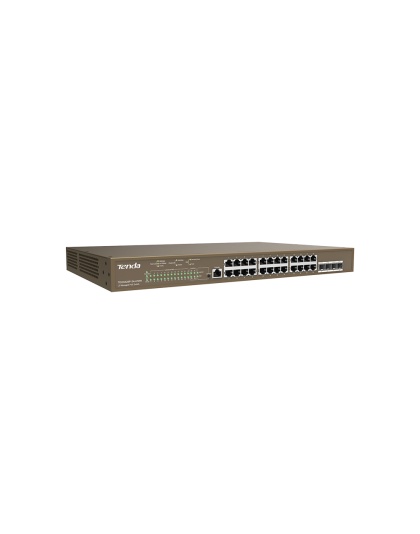

- Model: TEG5328P-24-410W
- SKU: TEG5328P-24-410W
-
