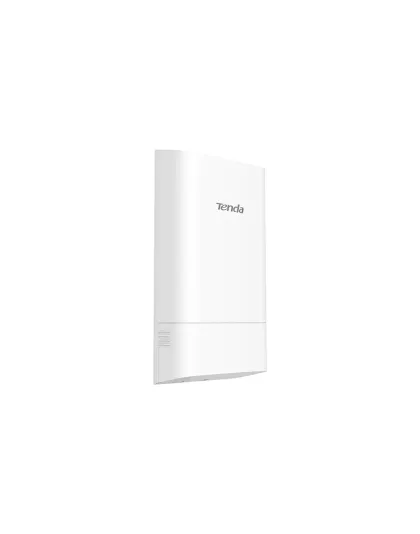

Model
O1-5G
Dimension132*72*46.3mm
DeploymentPole/Wall Mount
Application ScenariosPtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance
-
Frequency Range
5GHz
Compliant StandardsIEEE 802.11a/n/ac
Maximum Wireless Rate867Mbps

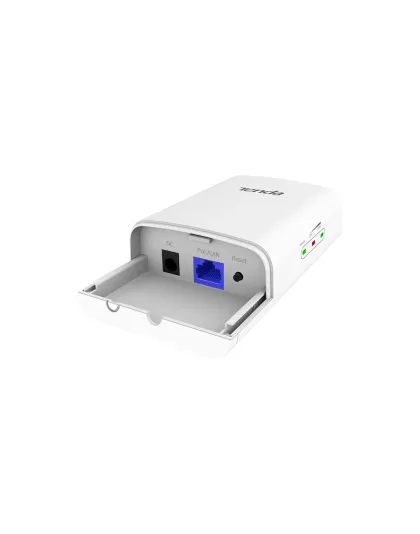

Interfaces1*10/100Mbps LAN Port
Antenna PolarizationDual Polarization
Antennas Gain9dBi
Antenna BeamwidthHorizontal: 30° Vertical: 30° Elevation: 30°
Reset Button1*Reset Button
Power Consumption4.7W
Waterproof LevelIP65
LED IndicatorPoE/LAN,LED1,LED2
Power Method12V 1A Passive PoE
12V 1A DCPassive PoEPassive power over ethernet via PoE/LAN (+4,5pins,-7,8pins )
up to 60 meters
Voltage range: 9-13V DCReception Sensitivity11a 6Mbps -92dBm±1.5dBm
11n MCS7 HT20 -72dBm±1.5dBm
11ac MCS9 HT80 -64dBm±1.5dBm -
Operating mode
AP/Station
Enable/Disable Wireless RadioSupport
SSID HiddenSupport
Wireless Client isolationSupport
Channel Bandwidth20/40/80MHz
Channel ShiftSupport
Client Limitation For SSIDSupport
Wireless Access ControlSupport
Transmission PowerAdjustable power by 1dBm
WMM CapableSupport
APSD CapableSupport
Wireless Security64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK
Transparent BridgeSupport
VPN Pass-ThroughPPTP,L2TP
Schedule RebootSupport
Page TimeoutSupport
Ping WatchdogSupport
Time and Date SettingSupport
Firmware upgradeSupport
Backup/Restore ConfigurationSupport
Username ManagermentSupport
System LogsSupport
Managed By ControllerPC Software -- CPE Assistant
-
Package Contents
1*5GHz 9dBi 11AC 867Mbps Outdoor CPE
1*Power Adapter
1*PoE Injector
1*Quick Installation GuideOperation Temperature-30℃ ~ 60℃
Storage Temperature-40℃ ~ 70℃
Operating Humidity10%~90% non-condensing
Storage Humidity10%~90% non-condensing
Default login IP192.168.2.1
Default Login Usernameadmin
Default Login Passwordadmin
CertificationFCC/CE/RoHS
- Model: O1-5G
- SKU: O1-5G
-
