Model
O8
Dimension391.5*280*223mm
DeploymentPole Mount
Application ScenariosPtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance
-
Frequency Range
5GHz
Compliant StandardsIEEE 802.11a/n/ac
Private TDMA ProtocolTD-MAX
Maximum Wireless Rate433Mbps
Interfaces1*10/100Mbps Ethernet Port
Antenna PolarizationVertical Polarization
Antennas Gain23dBi
Antenna BeamwidthVertical: 10° Elevation: 10°
Reset Button1
Power Consumption5.5W
Waterproof LevelIP65
LED IndicatorPoE/LAN,LED1,LED2,LED3
Power Method12V1A Passive PoE
Lightning Protection6000V
Passive PoEPassive power over ethenet via PoE/LAN(+4,5pins,-7,8pins )
Voltage range: 9-35V DCReception Sensitivity11a 6Mbps -95dBm±1.5dBm
11n MCS7 HT20 -72dBm±1.5dBm
11ac MCS9 HT80 -64dBm±1.5dBm -
TDMA
Support
Operating modeAP/Station/WISP/P2MP/WDS Repeater/Router
Enable/Disable Wireless RadioSupport
SSID HiddenSupport
Wireless Client isolationSupport
SSID IsolationSupport
Channel Bandwidth20/40/80MHz
Channel ShiftSupport
Wireless Access ControlSupport
Weak Signal Client LimitationSupport
Transmission PowerAdjustable power by 1dBm
WMM CapableSupport
APSD CapableSupport
Wireless Security64/128 WEP,WPA-PSK,WPA2-PSK,WPA
Transparent BridgeSupport
VLAN Tagging for SSIDSupport
DHCP ServerSupport
VPN Pass-ThroughPPTP,L2TP
Remote Web accessSupport
Schedule RebootSupport
Page TimeoutSupport
Ping WatchdogSupport
Dyndnsnoip, dyndns.org
Network DiagnosesPing, Traceroute, Signal Scan
Time and Date SettingSupport
Firmware upgradeSupport
Backup/Restore ConfigurationSupport
Username ManagermentSupport
System LogsSupport
Managed By ControllerPC Software -- CPE Assistant
-
Package Contents

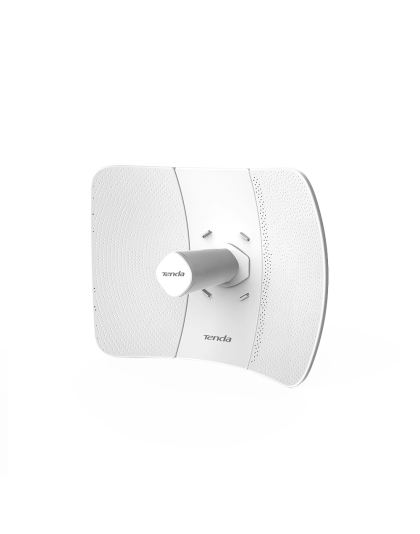

1*5GHz 23dBi 11ac Outdoor CPE O8
1*Power Adapter
1*PoE Injector
1*Quick Installation GuideOperation Temperature-30℃ ~ 60℃
Storage Temperature-40℃ ~ 70℃
Operating Humidity10%~90% non-condensing
Storage Humidity10%~90% non-condensing
Default login IP192.168.2.1
Default Login Usernameadmin
Default Login Passwordadmin
CertificationFCC/CE/RoHS
- Model: O8
- SKU: O8
-
