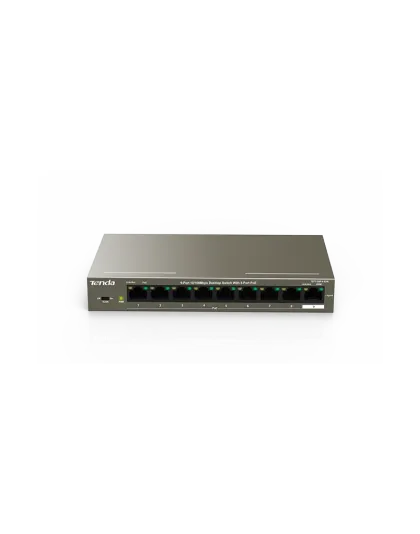

TENDA DESKTOP SWITCH 10/100 8-PORT POE 57W 1 PORT 10/100 FAST-ETHERNET UPLINK

IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at

9 * Link/Ack LED indicators
1 * Power LED indicator

8*10/100 Base-TX Ethernet ports (Data/Power)
1*10/100 Base-TX Ethernet ports (Data)

Recommended: CAT5/5e UTP or better

177.5mmx104.0mmx26.0mm

Lightning protection for ports: 6KV
Lightning protection for power: 4KV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV

Store-and-forward

1.8 Gbit/s

1.34Mpps

1.25Mb

4K

Single port: AF: 15.4W, AT: 30W
Whole device: 58W

100－240V AC 50/60Hz
51V /1.25A DC（Power Adapter ）

Desktop mounting: support
Wall mounting: support
Rack mounting:non-support

Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

FCC、CE、RoHS

Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
VLAN: ports 1 to 8 are isolated from each other, but can communicate with ports 9 (uplink port) respectively.
