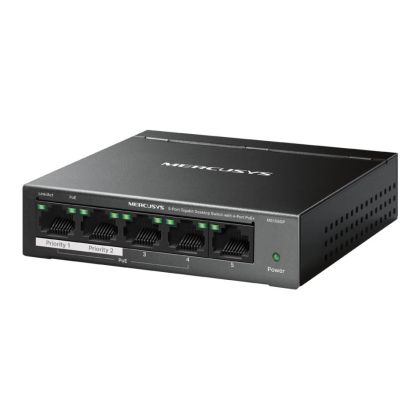

Mercusys MS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+
Reliable Gigabit Networking with Flexible PoE Power.
The Mercusys MS105GP 5-Port Gigabit Desktop Switch provides fast and stable wired connectivity with four PoE+ ports for powering devices such as IP cameras, access points and VoIP phones. With a total PoE power budget of up to 65W, it simplifies installations by delivering both power and data over a single Ethernet cable. Plug-and-play setup, durable metal housing and intelligent power management make it an ideal solution for small business networks and surveillance systems.
FEATURES
• Full Gigabit Ports - 5× 10/100/1000Mbps RJ45 ports
• Two Cables in One - With four PoE+ ports, transfers data and power on one single cable
• High Power PoE+ - Support PoE Power up to 30W for each PoE port and 65W for all PoE ports
• Long-Range up to 250m - Increases PoE transmission distance up to 250m with Extend Mode (Speed decreasing to 10Mbps)
• Isolation Mode - One click to divide traffic for specific ports for stability and security
• Compliant with Powered Devices - Works with IEEE 802.3af/at compliant PDs
• Durable Metal Casing - Allows for efficient heat dissipation and long network life
• Plug-and-Play - Simple to use and saves time and effort
SPECIFICATIONS
DIMENSIONS (W × D × H)
• 99.8 × 98 × 25mm
POE PORTS
• 4× PoE+ Ports (Ports 1~4)
• Standard: IEEE 802.3af/at Powered Devices
• PoE Power Budget: 65W
INTERFACES
• 5× RJ45 Gigabit Ethernet Ports
EXTERNAL POWER SUPPLY
• External Power Adapter (Output: 53.5V 1.31A)
INSTALLATION
• Desktop
• Wall Mount
STANDARDS AND PROTOCOLS
• IEEE 802.3x Flow Control
DATA RATES
• 10/100/1000Mbps at Half-Duplex
• 20/200/2000Mbps at Full-Duplex
JUMBO FRAME
• 9KB
MAC ADDRESS TABLE
• 2K
MAX POWER CONSUMPTION
• 3.13W (220V 50Hz, No PD Connected)
• 75.15W (220V 50Hz, With 65W PD Connected)
MAX HEAT DISSIPATION
• 10.64 BTU/h (No PD Connected)
• 255.51 BTU/h (With 65W PD Connected)
ENVIRONMENT
• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% RH Non-Condensing
• Storage Humidity: 5~95% RH Non-Condensing
- Availability: 163 In Stock
- Model: NET-MER-MS105GP
- SKU: NET-MER-MS105GP
-
