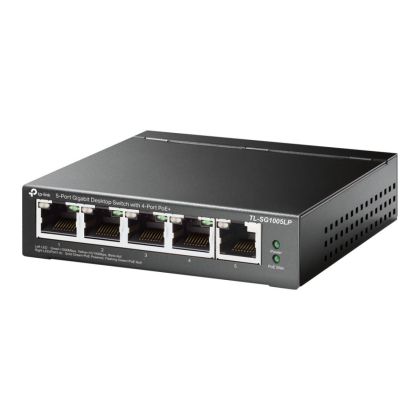

TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+Professional 5-Port Gigabit Switch with 4 PoE+ Ports
The TL?SG1005LP is an unmanaged Gigabit Ethernet switch that supports Power over Ethernet (PoE+) on four of its ports. It is designed for small office / home setups where you want to supply power and data over one cable to devices like IP cameras, access points, IP phones, etc., while also supporting full gigabit speeds.
FEATURES
• 5x 10/100/1000Mbps RJ45 ports
• With four PoE+ ports, transfers data and power on one single cable
• Works with IEEE 802.3af/at compliant PDs
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• Supports PoE Power up to 30W for each PoE port
• Supports PoE Power up to 40W for all PoE ports
• Plug and play, no configuration and installation required
SPECIFICATIONS
HARDWARE FEATURES
• Interface: 5× 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• Fan Quantity: Fanless
• External Power Supply: External Power Adapter (Output: 53.5 VDC / 0.81 A)
• Packet Forwarding Rate: 7.44 Mpps
• PoE Ports (RJ45): Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 40 W
• Mac Address Table: 2K
• Jumbo Frame: 16 KB
• Switching Capacity: 10 Gbps
• Dimensions (W x D x H): 99.8 × 98 × 25mm
• Max Power Consumption: 4.12 W (220/50 Hz. no PD connected)
• 47.5 W (220/50 Hz. with 40 W PD connected)
• Max Heat Dissipation: 14.05 BTU/h (no PD connected)
• 161.98 BTU/h (with 40 W PD connected)
SOFTWARE FEATURES
• Advanced Features: Compatible With IEEE 802.3af/at Compliant PDs
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
• Transfer Method: Store-And-Forward
OTHERS
• CertificationFCC, CE, RoHS
• Environment: Operating Temperature: 0–40°C
• Storage Temperature: -40–70°C
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
- Availability: 24 In Stock
- Model: NET-TL-SG1005LP
- SKU: NET-TL-SG1005LP
-
Brand:
