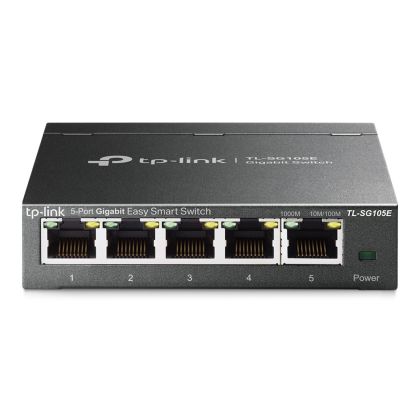

TP-Link TL-SG105E 5-Port Gigabit Easy Smart Switch
The TL?SG105E is a 5?port Gigabit Ethernet switch in the 摘asy Smart" category from TP?Link. It sits between a basic unmanaged switch and a fully managed switch: more control and features than a plug?and?play switch, but simpler and cheaper than enterprise?grade managed gear.
FEATURES
• 5 10/100/1000Mbps RJ45 ports
• Plug and play, with no configuration required
• Durable metal casing of superior quality and professional appearance
• Intelligent management via a web user interface and downloadable utility
• Green technology reduces power consumption
SPECIFICATIONS
HARDWARE FEATURES
• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
• Interface: 5 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation/AUTO MDI/MDIX
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• Fan Quantity: Fanless
• Power Supply: External Power Adapter(Output: 9VDC/0.6A)
• Dimensions (W x D x H): 100 x 98 x 25mm
• Max Power Consumption: 2.66W(220V/50Hz)
• Max Heat Dissipation: 9.07BTU/h
PERFORMANCE
• Packet Forwarding Rate: 7.4Mpps
• MAC Address Table: 2K
• Packet Buffer Memory: 1Mb
• Jumbo Frame: 15KB
SOFTWARE FEATURES
• Quality of Service: Support Port-based /802.1p/DSCP priority
• Support 4 priority queues
• Rate Limit
• Storm Control
• L2 Features: IGMP Snooping V1/V2/V3
• Static Link Aggregation
• Port Mirroring
• Cable Diagnostics
• Loop Prevention
• VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
• MTU/Port/Tag VLAN
• Transmission Method: Store-And-Forward
OTHERS
• Certification: FCC, CE, RoHS
• System Requirements: Microsoft Windows for running Utility
- Availability: 3 In Stock
- Model: NET-TL-SG105E
- SKU: NET-TL-SG105E
-
