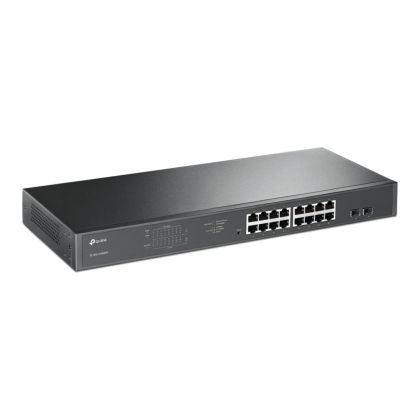

TP-Link TL-SG1218MPE 16-Port PoE+ Gigabit Rackmount Smart Switch
The TL?SG1218MPE is a 都mart" (L2?lite / Easy Smart) Gigabit Ethernet switch with built?in PoE+ (Power over Ethernet) support. It is designed for small to medium business networks that require both data and power delivery to devices like IP cameras, wireless access points, and VoIP phones.
FEATURES
• 16 10/100/1000Mbps RJ45 POE+ Ports Switch
• PoE power budget is up to 192W, making it ideal for small to medium business surveillance systems
• Port Priority is able to guarantee the quality of sensitive application like video monitor
• Intelligent power management can protect the switch from overload
• QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimising traffic for IPTV
SPECIFICATIONS
HARDWARE FEATURES
• Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
• IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
• Interface: 16 10/100/1000 Mbps RJ45 Ports
• (Auto Negotiation/Auto MDI/MDIX)
• 2 Gigabit SFP Ports
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-X MMF, SMF
• Fan Quantity: 2 Fans
• Physical Security Lock: Yes
• Power Supply: 100-240V AC, 50/60 Hz
• PoE+ Ports(RJ45): Standard: 802.3at/802.3af compliant
• PoE+ Ports: 16 Ports
• Power Supply: 192W
• Dimensions (W x D x H): 440 × 180 × 44mm
• Mounting: Rack Mountable
• Max Power Consumption: 18.73 W (220/50Hz. no PD connected)
• 217.22 W (220/50Hz. with 192W PD connected)
• Max Heat Dissipation63.89 BTU/h (no PD connected)
• 741.15 BTU/h (with 192W PD connected)
PERFORMANCE
• Switching Capacity: 36 Gbps
• Packet Forwarding Rate: 23.8 Mbps
• MAC Address Table: 8K
• Packet Buffer Memory: 4.1 Mbit
• Jumbo Frame: 9 KB
SOFTWARE FEATURES
• Quality of Service: Support Port-based 802.1p/DSCP priority
• Support 4 priority queues
• Rate Limit
• Storm Control
• L2 Features: IGMP Snooping V1/V2/V3
• Static Link Aggregation
• Port Mirroring
• Cable Diagnostics
• Loop Prevention
• VLAN: Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
• MTU/Port/Tag VLAN
• Management: Web-based GUI
• Easy Smart Configuration Utility
• Transmission Method: Store-And-Forward
OTHERS
• Certification: CE, FCC, RoHS
