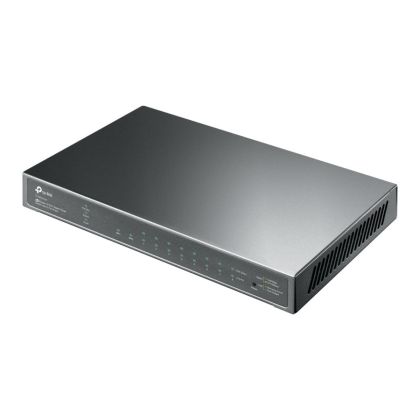

TP-Link TL-SG2210P JetStream 8-Port Gigabit Smart PoE+ Switch with 2 SFP Slots
TP-LINK Gigabit Smart Switch TL-SG2210P is equipped with 8 gigabit RJ45 ports and 2 SFP slots, all RJ45 Ports support IEEE 802.3af/at with total PoE power budget of 58W* and useful PoE power management features. The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features.TP-LINK's Gigabit Smart Switch TL-SG2210P is specially designed for the small and medium business networks that require efficient network management. TL-SG2210P comes with a comprehensive set of features, such as Link Aggregation Group, 802.1Q VLAN, Access Control Lists (ACL), Quality of Service(QoS L2 to L4), Storm Control and IGMP Snooping to provide a small or medium-sized business with a network that is geared for growth while ensuring performance and reliability. What痴 more, its easy-to-use web management interface means faster setup and configuration with less downtime, providing the ideal solution for your business network.
FEATURES
Features 8 PoE+ ports, with total PoE power budget of 58W and useful PoE power management features
• Gigabit Ethernet connections on all ports provide full speed of data transferring
• Integrated security strategy including 802.1Q VLAN, ACL, Port Security and Storm control help protect LAN area investment
• L2/L3/L4 QoS and IGMP snooping optimise voice and video applications
• WEB/CLI managed modes, SNMP, RMON bring abundant management features
• Innovative energy-efficient technology saves up to 50% of power consumption
SPECIFICATIONS
HARDWARE FEATURES
• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab,
• IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
• IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
• Interface: 8 10/100/1000Mbps RJ45 Ports
• 2 1000Mbps SFP Slots
• (Auto-Negotiation/Auto MDI/MDIX)
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
• 1000BASE-X: MMF, SMF
• Fan Quantity: Fanless
• Power Supply: 100~240VAC, 50/60Hz
• External Power Adapter(Output: 53.5VDC/1.31A)
• Power Consumption: Maximum (PoE on): 75.3W (220V/50Hz)
• Maximum (PoE off): 10.5W (220V/50Hz)
• PoE Ports (RJ45)Standard: 802.3af/at compliant
• PoE Ports: 8 Ports
• Power Supply: 58W*
• Dimensions ( W x D x H ) 209 x 126 x 26mm
PERFORMANCE
• Bandwidth/Backplane: 20Gbps
• Packet Forwarding Rate: 14.88Mpps
• MAC Address Table8k
• Packet Buffer Memory: 512KB
• Jumbo Frame: 9216 Bytes
SOFTWARE FEATURES
• Quality of Service: Support 802.1p CoS/DSCP priority
• Support 8 priority queues
• Queue scheduling: SP, WRR, SP+WRR
• Port/Flow- based Rate Limiting
• Voice VLAN
• VLAN: Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
• Access Control List: L2~L4 package filtering based on source and destination
• MAC address, IP address, TCP/UDP ports, 802.1p,
• DSCP, protocol and VLAN ID
• Time Range Based
• Security: SSH v1/v2
• SSL v2/v3/TLSv1
• Port Security
• Broadcast/Multicast/Unknown unicast Storm Control
• 802.1x and Radius Authentication、IP-Mac-Port-VID Binding、ARP Inspection、DHCP Snooping、DoS Defend
• L2 Switching Features: IGMP Snooping V1/V2/V3
• 802.3ad LACP (Up to 6 aggregation groups,
• containing 4 ports per group)
• Spanning Tree STP/RSTP/MSTP
• BPDU Filtering/Guard
• TC/Root Protect
• Loop back detection
• 802.3x Flow Control
• LLDP(LLDP-MED)
• Management: Web-based GUI and CLI management
• SNMP v1/v2c/v3, compatible with public MIBs and
• TP-LINK private MIBs
• RMON (1, 2, 3, 9 groups)
• CPU Monitoring
• Port Mirroring
• Time Setting: SNTP
• Firmware Upgrade: TFTP & Web
• System Diagnose: VCT
• SYSLOG & Public MIBS
OTHERS
• Certification: CE, FCC, RoHS
• Environment: Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8, MAC OS, NetWare, UNIX or Linux
- Availability: 44 In Stock
- Model: NET-TL-SG2210P
- SKU: NET-TL-SG2210P
-
