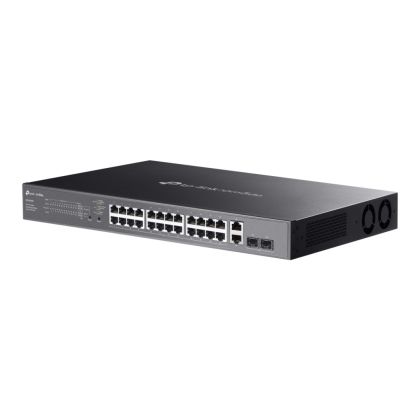

TP-Link Omada ES228GMP 28-Port Gigabit Easy Managed Switch with 24-Port PoE+
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
FEATURES
• 26× 10/100/1000Mbps RJ45 ports (24× 802.3af/at-compliant PoE+)
• 2× Gigabit SFP port
• 384W Power Budget, with up to 30W for each PoE port
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralised Cloud Management via the web or the Omada APP
• Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
• Automatic Loop Prevention, VLAN, and IGMP Snooping
• Durable metal casing and rack-mountable design
SPECIFICATIONS
HARDWARE FEATURES
Interface:
• 24× 10/100/1000Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)
• 2× 10/100/1000Mbps RJ45 Port
• 2× Gigabit SFP Slot
• Auto-Negotiation/Auto MDI/MDIX
Fan Quantity: 2
Installation: Rackmountable
Physical Security Lock: Yes
Power Supply: 100–240V AC, 50/60Hz
PoE Ports (RJ45):
• Standard: 802.3af PoE and 802.3at PoE+ compliant
• PoE Ports: 24 ports
• PoE Budget: 384W available for all PoE+ ports, 30W max per port
• Fast PoE & Perpetual PoE
• PoE Auto Recovery
• Up to 250m PoE transmission distance
Dimensions ( W x D x H ): 440 × 330 × 44mm
Surge Protection: ±6kV
PERFORMANCE
• Switching Capacity: 56Gbps
• Packet Forwarding Rate: 41.67Mpps
• MAC Address Table: 8K
• Packet Buffer Memory: 4Mbit
• Jumbo Frame: 15KB
SOFTWARE FEATURES
Quality of Service:
• Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control
L2 Features:
• Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP
L2 Multicast:
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN:
• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmission Method: Store-And-Forward
MANAGEMENT FEATURES:
Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management:
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning: Yes. Requires the use of Omada Cloud-Based Controller
Management Features:
• Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Unified Configuration
OTHERS
Certification: FCC, CE, RoHS
Environment:
• Operating Temperature: -5°C~45°C
• Storage Temperature: -40°C~70°C
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
