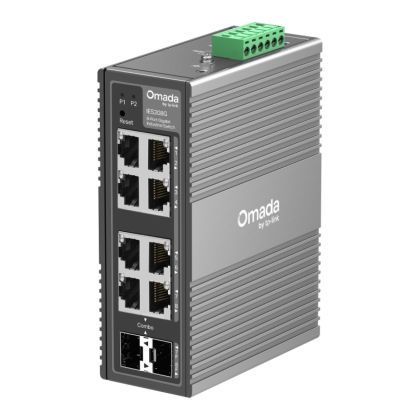

TP-LINK OMADA IES208G 8-PORT GIGABIT INDUSTRIAL EASY MANAGED SWITCH WITH 2× RJ45/SFP COMBO SLOTS

TP-LINK TP-LINK
Model:NET-TL-IES208G
SKU:NET-TL-IES208G
Availability:5 In Stock

R2,335.00

5 In Stock
Reviews (0)
Qty:

Total Price:

Add to Cart Buy Now
TP-Link Omada IES208G 8-Port Gigabit Industrial Easy Managed Switch with 2× RJ45/SFP Combo Slots Industrial Connectivity Built to Endure. The TP-Link Omada IES208G provides reliable Gigabit connectivity and essential network-management capabilities for surveillance, automation, energy and smart-building applications. Six fixed Gigabit RJ45 ports are complemented by two Gigabit RJ45/SFP combo interfaces, allowing copper or fibre connections to suit the installation. Its fanless IP40 aluminium enclosure operates across an extended -40~75°C temperature range and supports both DIN-rail and wall mounting. Dual 9.6~60V DC inputs provide 1+1 power redundancy, while the fault relay can trigger an external warning when a power or port fault occurs. VLAN, QoS, link aggregation, IGMP Snooping and STP/RSTP help improve traffic control and network resilience. Integration with the Omada platform enables centralised configuration, monitoring and cloud access through a web browser or the Omada app. FEATURES • Eight Gigabit Interfaces - Provides six fixed RJ45 ports and two RJ45/SFP combo interfaces for flexible copper or fibre connectivity • Industrial-Grade Construction - Features a durable IP40 aluminium enclosure designed for demanding deployment environments • Extended Operating Range - Operates in temperatures from -40~75°C • Redundant DC Power - Dual 9.6~60V DC inputs support 1+1 power redundancy for improved service continuity • Real-Time Fault Alarm - A relay output can activate an external warning when a configured port or power fault occurs • Electrical Protection - Provides surge, ESD, overload-current, overvoltage and reverse-polarity protection • Essential Layer 2 Management - Supports VLAN, QoS, link aggregation, port mirroring, LLDP and loopback detection • Resilient Network Design - STP and RSTP help prevent switching loops and improve network availability • Omada Centralised Management - Supports unified configuration, monitoring and firmware management through compatible Omada controllers • Flexible Installation - Includes hardware for DIN-rail and wall mounting • Fanless Operation - Passive cooling eliminates fan noise and reduces moving components SPECIFICATIONS GENERAL • Enclosure: IP40 Aluminium • Cooling: Fanless • Flash Memory: 64Mbit • Transmission Method: Store-and-Forward NETWORK INTERFACES • Fixed Copper Ports: 6× 10/100/1000Mbps RJ45 • Combo Interfaces: 2× Gigabit RJ45/SFP • Auto-Negotiation: Supported • Auto MDI/MDIX: Supported • Optical Interface Standard: 1000BASE-X • Copper Interface Standards: 10BASE-T, 100BASE-TX and 1000BASE-T NETWORK STANDARDS • IEEE 802.3i: 10BASE-T Ethernet • IEEE 802.3u: 100BASE-X Fast Ethernet • IEEE 802.3ab: 1000BASE-T Gigabit Ethernet • IEEE 802.3z: 1000BASE-X Gigabit Ethernet • IEEE 802.3x: Flow Control • IEEE 802.1p: Traffic Prioritisation • IEEE 802.1Q: VLAN • IEEE 802.1D: Spanning Tree Protocol • IEEE 802.1w: Rapid Spanning Tree Protocol • IEEE 802.1AB: Link Layer Discovery Protocol PERFORMANCE • Switching Capacity: 16Gbps • Packet Forwarding Rate: 11.9Mpps • MAC Address Table: 8K Entries • Packet Buffer: 4Mbit • Jumbo Frame: 15KB • Mean Time Between Failures: 863,865 Hours @25°C LAYER 2 FEATURES • Link Aggregation: Static • Aggregation Groups: Up to 2 • Ports per Aggregation Group: Up to 4 • Spanning Tree: STP and RSTP • Loopback Detection: Supported • Flow Control: IEEE 802.3x • Port Mirroring: One-to-One and Many-to-One • Mirroring Direction: Ingress, Egress or Both • Port Statistics: Supported • LLDP: IEEE 802.1AB • IGMP Snooping: IGMP v1, v2 and v3 • IGMP Fast Leave: Supported VLAN • VLAN Modes: MTU VLAN, Port-Based VLAN and IEEE 802.1Q Tagged VLAN • Maximum VLAN Groups: 32 • VLAN ID Range: 4K QUALITY OF SERVICE • Traffic Prioritisation: IEEE 802.1p and DSCP • Priority Queues: 8 • Queue Scheduling: Weighted Round Robin • Queue Weight Configuration: Supported • Bandwidth Control: Port-Based Rate Limiting • Storm Control: Broadcast, Multicast and Unknown Unicast • Storm-Control Units: kbps or pps MANAGEMENT • Standalone Management: Web-Based GUI • Centralised Management: Omada Hardware Controller, Software Controller or Cloud-Based Controller • Omada App: Supported with a Compatible Omada Controller • Cloud Access: Supported with a Compatible Omada Controller • Zero-Touch Provisioning: Supported with Omada Central • Automatic Device Discovery: Supported • Batch Configuration: Supported • Batch Firmware Upgrades: Supported • Unified Configuration: Supported • DHCP Client: Supported • Cable Diagnostics: Supported • Digital Diagnostic Monitoring: Supported for Compatible SFP Modules POWER • Power Input: Dual 9.6~60V DC • Power Redundancy: 1+1 • Overload-Current Protection: Supported • Overvoltage Protection: Supported • Reverse-Polarity Protection: Supported • Standby Power Consumption @12V DC: 1.79W Maximum • Standby Power Consumption @24V DC: 2.16W Maximum • Standby Power Consumption @48V DC: 3.17W Maximum • Maximum Power Consumption @12V DC: 4.46W • Maximum Power Consumption @24V DC: 4.17W • Maximum Power Consumption @48V DC: 5.99W • Fault Relay: Normally Closed Contact, 24V 1A Maximum PROTECTION • Ethernet-Port Surge Protection: ±6kV Common Mode • DC-Input Surge Protection: ±4kV Common Mode • ESD Protection: ±8kV Air Discharge and ±6kV Contact Discharge • Shock Standard: IEC 60068-2-27 • Freefall Standard: IEC 60068-2-32 • Vibration Standard: IEC 60068-2-6 PHYSICAL • Installation: DIN-Rail or Wall Mounting • Dimensions: 129 × 95 × 45mm • Net Weight: 0.56kg • Ingress Protection Rating: IP40 • Maximum Heat Dissipation @12V DC: 15.16BTU/h • Maximum Heat Dissipation @24V DC: 14.18BTU/h • Maximum Heat Dissipation @48V DC: 20.37BTU/h ENVIRONMENTAL • Operating Temperature: -40~75°C • Storage Temperature: -40~85°C • Operating Humidity: 5~95% RH, Non-Condensing • Storage Humidity: 5~95% RH, Non-Condensing COMPLIANCE • Certifications: CE, FCC and RoHS • EMC Standards: IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55032/35, EN 61000-6-2 and EN 61000-6-4 NOTES • Each RJ45/SFP combo interface supports either its RJ45 connection or its corresponding SFP slot at one time • A compatible external 9.6~60V DC power supply is required and is not included • SFP modules are sold separately • Centralised management functions require a compatible Omada controller • Zero-Touch Provisioning requires Omada Central Standard or Omada Central Essentials
  • Availability: 5 In Stock
  • Model: NET-TL-IES208G
  • SKU: NET-TL-IES208G
  • Brand: TP-LINK
