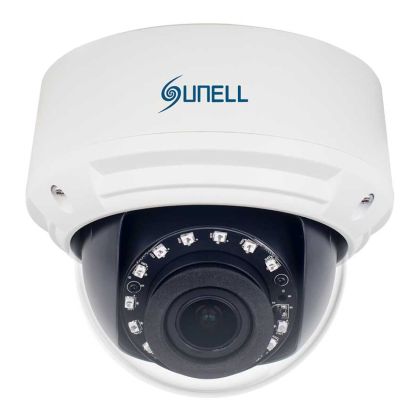

Sunell IPV57/41UDR/Z 4MP Motorized Vari-Focal IP PoE Mini Dome Camera
The Sunell CAM‑IPV57‑41UDR‑Z is a very capable mid‑to‑upper‑tier IP dome camera that brings strong resolution, lens flexibility and robust build quality into one package. It’s a worthy choice for commercial installations such as retail, small campuses, offices or building perimeters.
FEATURES
• Sunell 4MP Motorized Vari-Focal IP PoE Mini Dome Camera (IPV57/41UDR/Z)
• 1/3" Progressive Scan CMOS
• Motorized lens 2.7~12mm
• 25fps/30fps@4MP(2592*1520)
• Triple Streams
• Smart IR Up to 30m
• Low bitrate, Excellent low light performance
• WDR, 3D DNR
• ROI, Defog, HLC, Corridor mode, DIS
• IP67, IK10
SPECIFICATIONS
Camera
• Image Sensor: 1/3" Progressive Scan CMOS
• Effective Pixels: 2592(H)×1520(V)
• Scanning System: Progressive
• Electronic Shutter: 1/5-1/20000s
• Min. Illumination: Colour: 0.05 Lux @(F1.2,AGC ON), B/W: 0 Lux @(IR LED ON)
• S/N Ratio: 55dB
• IR Range: Up to 30m
• IR On/Off Control: Auto/ Manual
• IR LEDs: 15pcs
• Pan/Tilt/Rotation Range: Pan: 0˚~355˚, Tilt: 0˚~80˚, Rotation: 0˚~355˚
Lens
• Lens Type: Motorised
• Iris: Auto Iris
• Focal Length: 2.7~12mm
• F Number: F1.3
• Angle of View: 100°~ 30°
• Focus Control: Motorised
• Close Focus Distance: 0.2m
Video
• Compression: H.265,H.264,MJPEG
• Max. Resolution: 4MP (2592×1520)
• Streaming Capability: 3 Streams
• Stream1: 2592×1520/2560×1440/2304×1296/ 1920×1080/1280×720 @25/30fps
Frame Rate
• Stream2: D1/VGA/640×360/CIF/QVGA @25/30fps
• Stream 3: VGA/CIF/QVGA @25/30fps
• Bit Rate Control: CBR/VBR
Bit Rate
• Stream1: 500kbps~12000kbps
• Stream 2: 100kbps~6000kbps
• Stream 3: 100kbps~3000kbps
• Day/Night: ICR
• Image Enhancement: HLC / Defog / WDR (120dB)
• White Balance: Support
• Gain Control: Auto/Manual
• Noise Reduction: 2D/3D DNR
• Electronic Image Stabilisation: (EIS): Support
• Smart IR: Support
• Mirror: Support
• Region of Interest: Support
• Motion Detection: Support
• Privacy Masking: Support
Audio
• Compression: G.711 ,RAW_PCM
• Bit Rate: 64kbps (G.711), 128kps (RAW_PCM)
Network
• Protocols: IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, APR, SNMP
• Interoperability: ONVIF
• Streaming Method: Unicast
• Max. User Access: 10 Users
• Web Viewer:
Availability: 4 In Stock
Model: CAM-IPV57-41UDR-Z
SKU: CAM-IPV57-41UDR-Z
