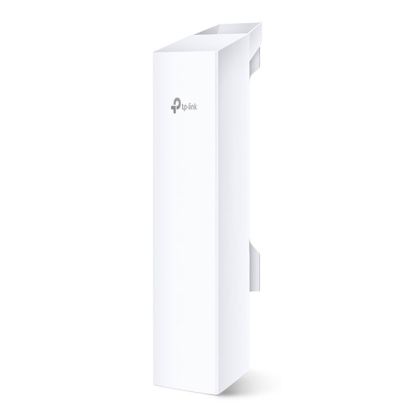

TP-Link CPE220 2.4GHz 300Mbps 12dBi 2ﾗ2 Outdoor CPE
ULong-Range Wireless. Rock-Solid Performance.
The TP-Link CPE220 delivers stable 2.4GHz connectivity up to 13km+ with its integrated 12dBi directional MIMO antenna and MAXtream TDMA technology - perfect for PTMP and WISP deployments. Rugged, weatherproof and PoE-powered for flexible outdoor installation, it痴 built to perform where it matters most.
FEATURES
• Integrated 12dBi 2×2 Dual-Polarised Directional MIMO Antenna - High-gain antenna design for focused, stable long-range connectivity
• Adjustable Transmission Power 0~30dBm / 1000mW - Flexible output control to optimise signal strength for different deployment scenarios
• Long-Range Wireless Transmission up uo 13km+ - System-level optimisation ensures reliable performance over extended distances
• Pharos MAXtream TDMA Technology - Improves throughput, capacity and latency, ideal for high-performance PTMP applications
• Centralised Management via Pharos Control - Streamlined configuration, monitoring and maintenance from a single platform
• Multiple Operation Modes - Supports AP, Client, AP Router and AP Client Router (WISP) for versatile network deployment
• Passive PoE Support up uo 60m - Simplified Power over Ethernet installation with remote reset capability
SPECIFICATIONS
HARDWARE FEATURES
• Processor: Qualcomm Atheros 560MHz CPU (MIPS 74Kc)
• Memory: 64MB DDR2 RAM, 8MB Flash
• Interface:
- 1× 10/100Mbps Shielded Ethernet Port (LAN 0, Passive PoE In)
- 1× 10/100Mbps Shielded Ethernet Port (LAN 1, Passive PoE Passthrough)
- 1× Grounding Terminal
- 1× Reset Button
• Power Supply: Passive PoE via LAN 0 (4,5+ Pins; 7,8- Pins), 16~27VDC
• Max. Power Consumption: 10.8W
• Antenna: Built-In 12dBi 2×2 Dual-Polarised Directional Antenna
• Beam Width: 60° (H-Plane) / 30° (E-Plane)
• Protection: 15kV ESD Protection, 6kV Lightning Protection
• Enclosure: Outdoor ASA Stabilised Plastic, IPX5 Weatherproof
• Dimensions: 276 × 79 × 60mm
WIRELESS FEATURES
• Wireless Standards: IEEE 802.11b/g/n (Pharos MAXtream Disabled)
• Proprietary Protocol: TDMA Mode (Pharos MAXtream Enabled)
• Frequency: 2.4~2.483GHz
• Wireless Speeds:
- up to 300Mbps (40MHz)
- up to 144.4Mbps (20MHz)
- up to 72.2Mbps (10MHz)
- up to 36.1Mbps (5MHz)
• Transmission Power: up to 30dBm / 1000mW (Adjustable by 1dBm)
SOFTWARE FEATURES
• Pharos MAXtream TDMA Technology
• Selectable Channel Width: 5 / 10 / 20 / 40MHz
• Automatic Channel Selection
• Transmission Power Control
• WDS Enable/Disable
• Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP), 64/128/152-bit WEP
• Multi-SSID with VLAN Tagging (AP Mode Only)
• Wireless MAC Address Filtering
• Distance/ACK Timeout Setting
MANAGEMENT
• Centralised Management via Pharos Control
• HTTP/HTTPS Web-Based Management
• SNMP v1/v2c
• SSH Server
• Dynamic DNS
• Ping Watchdog
• System Logs
POE ADAPTER FEATURES
• Remote Reset Button
• 24V Passive PoE Adapter Included
• PoE Deployment: up to 60m
• Input: 100~240VAC, 50/60Hz
• Output: 24VDC, 1A Max.
• Efficiency: >80%
ENVIRONMENT
• Operating Temperature: -30~70°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% Non-Condensing
• Storage Humidity: 5~95% Non-Condensing
- Availability: 22 In Stock
- Model: NET-CPE220
- SKU: NET-CPE220
-
