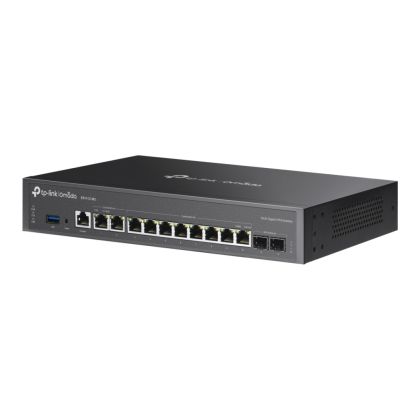

TP-Link Omada ER7412-M2 Multi-Gigabit VPN Router
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.
FEATURES
• Quad-core @2.0GHz CPU
• 2× 2.5G RJ45 WAN/LAN ports
• 10× Gigabit WAN/LAN Ports (2× SFP, 8× RJ45)
• 1× USB3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
• Up to 11 WAN ports
• Multi-WAN Load Balancing raises the utilization rate of multi-line broadband
• High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
• Centralized cloud management via the web or the Omada APP
• DoS defense, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security
SPECIFICATIONS
SECURITY
Access Control:
• Source/Destination IP-Based ACL
• Stateful ACL
• IPv4/IPv6 ACL
• Location Based ACL
Filtering:
• WEB Group Filtering
• URL Filtering
• Web Security
ARP Inspection:
• Sending GARP Packets
• ARP Scanning
• IP-MAC Binding
Attack Defense:
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
HARDWARE FEATURES
Standards and Protocols:
• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
Interface:
• 1× 2.5G RJ45 WAN/LAN Port
• 1× 2.5G RJ45 WAN/LAN Port
• 2× Gigabit SFP WAN/LAN Ports
• 8× Gigabit RJ45 WAN/LAN Ports
• 1× RJ45 Console Port
• 1× USB3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
Network Media:
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
• 2500BASE-T: UTP category 5e, 6 cable (Max 100 m)
Button: Reset Button
Power Supply: 100–240 VAC, 50/60 Hz
Flash: 128MB NAND
DRAM: 1 GB DDR4
Dimensions ( W x D x H ): 294×180×44mm
Protection: 4 kV surge protection
Enclosure: Steel
Mounting:
• Desktop
• Rackmountable
Max. Power Consumption: 18.5W (With USB3.0 connected)
BASIC FUNCTIONS
WAN Connection Type:
• Static IP/Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP
• Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone: Modify WAN/LAN MAC Address
DHCP:
• DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN: 802.1Q VLAN
IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
ADVANCED FEATURES
Advanced Routing:
• Static Routing
• Policy Routing
• RIP (available in Standalone Mode)
• OSPF (available in Standalone Mode)
Bandwidth Control: IP/Port-based Bandwidth Control
Load Balance:
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection
NAT:
• One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Session Limit: IP-based Session Limit
VPN
GRE: Only in Standalone Mode
SSL VPN: 80 Tunnels
IPsec VPN:
• 150 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN:
• PPTP VPN Server
• PPTP VPN Client (15)
• 150 Tunnels
• PPTP with MPPE Encryption
L2TP VPN:
• L2TP VPN Server
• L2TP VPN Client (15)
• 150 Tunnels
• L2TP over IPSec
OpenVPN:
• OpenVPN Server
• OpenVPN Client (11)
• 121 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode
WireGuard VPN:
• 20 Tunnels
AUTHENTICATION
Web Authentication:
• No Authentication
• Simple Password
• Hotspot (Local User/Voucher/SMS/Radius)
• External Radius Server
• External Portal Server
• LDAP
MANAGEMENT FEATURES
Omada App: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management:
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Service: Dynamic DNS (DynDNS, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance:
• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)
• NTP Synchronize
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support
Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller
Management Features:
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
- Availability: Out of Stock
- Model: NET-TL-ER7412-M2
- SKU: NET-TL-ER7412-M2
-
