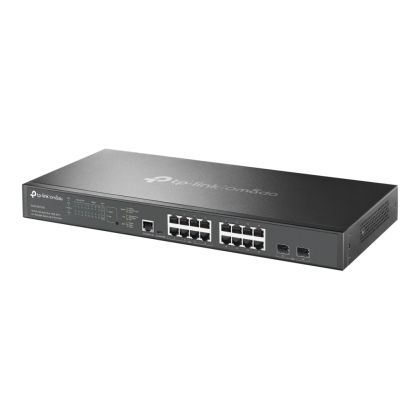

TP-LINK OMADA SG3218XP-M2 16-PORT 2.5G L2+ MANAGED SWITCH WITH 8× POE+ PORTS AND 2× 10G SFP+ SLOTS
R7,100.00
TP-Link Omada SG3218XP-M2 16-Port 2.5G L2+ Managed Switch with 8× PoE+ Ports and 2× 10G SFP+ Slots
Powering Faster Business Networks.
The TP-Link Omada SG3218XP-M2 delivers high-capacity switching for Wi-Fi 7 access points, servers, network storage, surveillance systems and other bandwidth-intensive devices. All sixteen RJ45 ports support multi-gigabit speeds up to 2.5Gbps, while eight ports provide PoE+ with a combined 240W power budget. Two 10G SFP+ slots enable high-speed fibre or direct-attach uplinks to core switches and servers. Its comprehensive L2+ feature set includes static routing, VLAN, link aggregation, advanced QoS and multicast management. Security capabilities such as ACL, IEEE 802.1X authentication, DHCP Snooping and IP-MAC-Port binding help protect business networks. Integration with the Omada SDN platform provides centralised configuration, cloud access, intelligent monitoring and multi-site management through compatible Omada controllers.
FEATURES
• Sixteen 2.5G Ports - Provides multi-gigabit connectivity for Wi-Fi 7 access points, servers, workstations and network storage
• Eight PoE+ Ports - Delivers data and power to compatible access points, cameras, VoIP phones and other powered devices
• 240W PoE Budget - Provides substantial shared power capacity across the eight PoE+ ports
• Dual 10G Uplinks - Two SFP+ slots support high-bandwidth connections to servers, storage systems and core switches
• L2+ Network Management - Supports static routing, VLAN, link aggregation, spanning tree and advanced multicast management
• Omada SDN Integration - Enables centralised configuration, monitoring and management through compatible Omada controllers
• Advanced Traffic Prioritisation - L2/L3/L4 QoS helps maintain smooth voice, video and other latency-sensitive services
• Enterprise Network Security - Includes ACL, IEEE 802.1X, DHCP Snooping, port security, DoS defence and IP-MAC-Port binding
• IPv4 and IPv6 Support - Provides dual-stack operation, static routing, ACL and multicast-management capabilities
• Flexible Administration - Supports web, CLI, SNMP, RMON, Omada cloud access and the Omada app
• Rackmount Design - Fits standard 19" equipment racks and includes the required mounting hardware
• Resilient Configuration - Dual image and dual configuration support help reduce downtime during maintenance and recovery
SPECIFICATIONS
GENERAL
• Installation: 19" Rackmount, 1U
• Dimensions: 440 × 180 × 44mm
• Cooling: 2× Fans
NETWORK INTERFACES
• RJ45 Ports: 16× 10/100/1,000/2,500Mbps
• PoE+ Ports: 8× 2.5Gbps RJ45, Ports 1~8
• Non-PoE Ports: 8× 2.5Gbps RJ45, Ports 9~16
• Uplink Slots: 2× 10G SFP+
• Console Ports: 1× RJ45 and 1× Micro-USB
POWER OVER ETHERNET
• PoE Standards: IEEE 802.3af and IEEE 802.3at
• Maximum Power per PoE+ Port: 30W
• Total PoE Budget: 240W
PERFORMANCE
• Switching Capacity: 120Gbps
• Packet Forwarding Rate: 89.28Mpps
• MAC Address Table: 16K Entries
• Packet Buffer: 12Mbit
• Jumbo Frame: 9KB
NETWORK FEATURES
• Layer 2 Features: VLAN, LACP, STP, RSTP, MSTP, Port Mirroring, Loopback Detection and Flow Control
• Layer 3 Features: Static IPv4/IPv6 Routing, DHCP Server and Relay, Proxy ARP and Gratuitous ARP
• Multicast Management: IGMP v1/v2/v3 Snooping, MLD v1/v2 Snooping, MVR and Multicast Filtering
• VLAN Support: Up to 4K VLAN Groups, IEEE 802.1Q, MAC-Based VLAN, Protocol VLAN, QinQ and Voice VLAN
• Quality of Service: Eight Priority Queues, IEEE 802.1p CoS, DSCP and Port- or Flow-Based Rate Limiting
• Security: ACL, IEEE 802.1X, DHCP Snooping, IP-MAC-Port Binding, Port Security, DoS Defence and Storm Control
• IPv6 Support: Dual IPv4/IPv6 Stack, Static IPv6 Routing, IPv6 ACL and Neighbour Discovery
MANAGEMENT
• Standalone Management: Web-Based GUI, CLI, SNMP and RMON
• Centralised Management: Omada Hardware, Software or Cloud-Based Controller
• Compatible Hardware Controllers: Omada OC200 and OC300
• Omada App and Cloud Access: Supported with a Compatible Omada Controller
• Zero-Touch Provisioning: Supported with Omada Cloud-Based Controller
• Management Tools: Device Discovery, Batch Configuration, Firmware Upgrades, Network Monitoring and Event Notifications
POWER AND ENVIRONMENTAL
• Power Input: 100~240V AC, 50/60Hz
• Standby Power Consumption: 15.6W
• Maximum Power Consumption: 299.4W @110V 60Hz with a 240W PoE Load
• Operating Temperature: 0~50°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% RH, Non-Condensing
• Storage Humidity: 5~90% RH, Non-Condensing
COMPLIANCE
• Certifications: CE, FCC and RoHS
NOTES
• The 240W PoE budget is shared across ports 1~8, with a maximum output of 30W per port
• Centralised management, cloud access and Omada app support require a compatible Omada controller
- Availability: Out of Stock
- Model: NET-TL-SG3218XP-M2
- SKU: NET-TL-SG3218XP-M2
-
