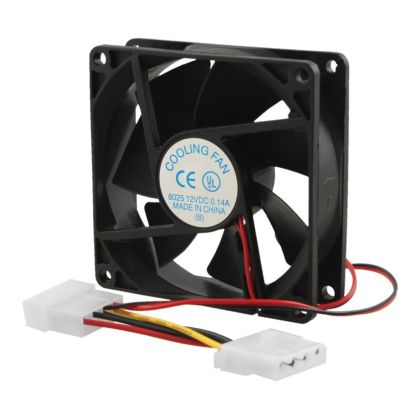

CHASSIS FAN 80MM BLACK - 8CMFAN DC FAN CHASSIS FAN 80MM BLACK Specification Measurement: 80 x 80 x 25mm Rated Voltage: 12 DCV
MICROWORLD
R41.40
CHASSIS FAN 80MM BLACK - 8CMFAN DC FAN CHASSIS FAN 80MM BLACK Specification Measurement: 80 x 80 x 25mm Rated Voltage: 12 DCV
Operating Voltage: 3.5 - 16 DCV
Starting Voltage: 3 DCV (on/off)
Rated Current: 0.20±0.01 Amp
Input Power: 24 Watts
Rated Speed: 1800 RPM±10% (after running3-5minutes)
Noise Level: 35 dB(A)
Max. Air Flow: 28 CFM
Max. Static Pressure: 5.6 mmAq
Life Expectancy: 30000 Hours (at 25? 65%R.H.)
Operating Temperature: -10 - +85 ?(66%RH)
Storage Temperature: -40-+70 ?(66%RH) Weight: GramFAN HOUSING: PBT 85%+FIBER15%
FAN BLADE: PBT 80%+FIBER20%
INSULATOR FRAME: PBT 100%
SHAFT: STAINLESS STEEL
BEARING: BALL
PLASTIC MAGNET: STRONTIUM FERRITE
ENAMELED WIRE: 2 UEW
SILICON STEEL STRIP: H23
HALL IC: CC6412
LEAD WIRES: 2468 26AWG L-165mm
- Availability: 6204 In Stock
- Model: 8CMFAN
- SKU: 8CMFAN
- Brand: MICROWORLD
Reviews
There are no reviews for this product.
