TP-LINK OMADA BEAM BRIDGE 5 UR KIT 5.0GHZ 867MBPS 15KM ULTRA-RANGE OUTDOOR PTP WIRELESS BRIDGE
R3,270.00
11 In Stock

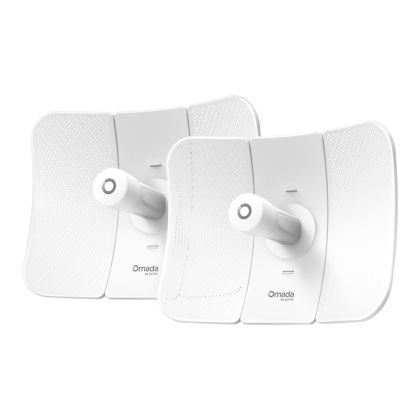

TP-Link Omada Beam Bridge 5 UR KIT 5.0GHz 867Mbps 15km Ultra-Range Outdoor PtP Wireless Bridge
Ultra-Range Wireless Connectivity for Remote Outdoor Locations.
The TP-Link Omada Beam Bridge 5 UR KIT creates a high-speed point-to-point network link across distances up to 15km, providing a practical alternative where installing fibre or Ethernet cabling is difficult. The kit contains two preconfigured 5.0GHz bridges that automatically pair after power-up, simplifying deployment between remote buildings, cameras, construction sites, farms, substations and other distributed facilities. Each bridge combines 23dBi dual-polarised directional antennas with up to 867Mbps wireless performance, app-guided alignment, signal LEDs and installation speed testing. A Gigabit PoE input supports 802.3af or 24V/48V passive PoE, while IP65 weather resistance, 6kV surge protection and a -40~70°C operating range support demanding outdoor installations. Standalone and Omada SDN management provide local or centralised monitoring and configuration.
FEATURES
• Up to 15km Transmission - Creates ultra-range point-to-point network links between remote locations
• Preconfigured Two-Unit Kit - Includes a Main AP and Client AP that automatically pair after power-up
• Up to 867Mbps Wireless Performance - Provides high-speed 5.0GHz connectivity for data, video and network extension
• 23dBi Directional Antennas - Concentrate the wireless signal for stable long-distance communication
• App-Guided Alignment - Displays real-time signal strength to help optimise bridge positioning
• Installation Speed Testing - Verifies link performance through the Omada app during setup
• LED Signal Indicators - Provide immediate visual assistance when aligning the two bridge units
• Flexible PoE Support - Accepts IEEE 802.3af or 24V/48V passive PoE through the Gigabit Ethernet port
• Outdoor-Ready Construction - Features IP65 weather resistance, 6kV surge protection and Class 16 wind resistance
• Main and Client Role Switch - Allows each bridge to be assigned as the Main AP or Client AP
• Omada SDN Integration - Supports centralised cloud management, remote monitoring and batch deployment
• Pole-Mounting System - Includes the hardware required for secure outdoor pole installation
SPECIFICATIONS
WIRELESS
• Wireless Application: Point-to-Point Wireless Bridge
• Frequency Band: 5.0GHz
• Wireless Standards: IEEE 802.11a/n/ac
• Maximum Wireless Rate: Up to 867Mbps
• Maximum Transmission Distance: Up to 15km
• Channel Bandwidth: 20MHz, 40MHz and 80MHz
• Wireless Configuration: 2×2 MIMO with 2 Spatial Streams
• Antenna Type: Dual-Polarised Directional MIMO
• Antennas per Bridge: 2× 23dBi
• Horizontal Beamwidth: 9°
• Vertical Beamwidth: 7°
• Maximum Associated Stations: 8
BRIDGE FUNCTIONS
• Pairing: Preconfigured Automatic Pairing
• Device Roles: Main AP and Client AP
• Role Selection: Physical Role Switch
• Antenna Alignment: Omada App and LED Signal Indicators
• Installation Speed Test: Yes
• Automatic Channel Selection: Yes
• Channel Optimisation: Yes
• Rate Limiting: Yes
• Guest Network: Yes
CONNECTIVITY
• Ethernet Interface per Bridge: 1× Gigabit RJ45 PoE Input Port
• Supported Ethernet Speeds: 10Mbps, 100Mbps and 1Gbps
• Maximum Ethernet Cable Length: 100m
• Reset Button: Yes
• Status Indicators: System, LAN and 4× Signal Strength LEDs
POWER
• PoE Input per Bridge: IEEE 802.3af PoE or 24V/48V Passive PoE
• IEEE 802.3af Pin Assignment: Pins 1 and 2, Pins 3 and 6
• Passive PoE Pin Assignment: Positive Pins 4 and 5, Negative Pins 7 and 8
• Included Power Supply: 24V Passive PoE Adapter
• Maximum Power Consumption per Bridge: 15.8W
• Idle Power Consumption per Bridge: 2.87W
MANAGEMENT
• Standalone Management: Web Interface and Omada App
• Centralised Management: Omada Central, Omada Hardware Controller and Omada Software Controller
• Cloud Access: Yes, with a Compatible Omada Controller
• Zero-Touch Provisioning: Yes
• Remote Monitoring: Yes
• Batch Provisioning: Yes
• Management Protocols: SNMP and SSH
• Configuration Backup and Restore: Yes
• Email Alerts: Yes
• LED Control: Yes
SECURITY
• Wireless Encryption: Yes
• VLAN Support: Yes
• Rogue Access Point Detection: Yes
• MAC Filtering Capacity: Up to 4,000 Entries
• Management VLAN: Yes
PHYSICAL
• Dimensions per Bridge (W × D × H): 366 × 280 × 207mm
• Weight per Bridge: 1.1kg
• Mounting Unit Weight: 48g
• Mounting Method: Pole Mounting
• Colour: White
• Assembly Required: Yes
PROTECTION AND ENVIRONMENTAL
• Weather Resistance: IP65 when Correctly Pole Mounted
• Ethernet Surge Protection: 6kV
• ESD Protection: 30kV Air Discharge and 4kV Contact Discharge
• Wind Resistance: Class 16
• Operating Temperature: -40~70°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% Non-Condensing
• Storage Humidity: 5~90% Non-Condensing
• Maximum Operating Altitude: Up to 2,000m
COMPLIANCE
• Certifications: CE, FCC and RoHS
NOTES
• Installation must be completed by a certified professional in accordance with local frequency, output-power and Dynamic Frequency Selection requirements
• Shielded CAT5e or higher network cable with a grounding conductor is recommended for lightning and ESD protection
• Omada SDN centralised and remote management requires a compatible Omada controller
- Availability: 11 In Stock
- Model: NET-BEAMBRIDGE-5UR
- SKU: NET-BEAMBRIDGE-5UR
-
