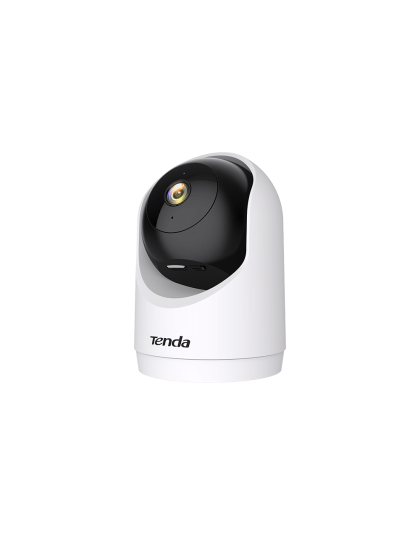

TENDA INDOOR HOME CAMERA,1080P

1/3 Progressive Scan CMOS sensor

IR-Cut Filter with Auto-Switching

4 mm

F2.0

Horizontal FOV: 84°, Vertical FOV: 53.1°, Diagonal FOV: 91.1°

4 IR lights

Up to 10 m/30 ft (depending on environment)

850 nm

Black & White Mode

H.265

2304 ×1296

640 × 360

1-20fps, Default 20fps

128kbps -- 4096kbps

VBR

G.711A, G.711U, AAC

8 kHz

Two-way Audio

DWDR, 3D DNR

4 areas

Support

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP

0-355°

-15°-55°

6

Panoramic Patrol, Preset Patrol

Internal antenna

IEEE 802.11 b/g/n/ax

Up to 287 Mbps

20/40 MHz

DSSS/OFDM/OFDMA

2.4GHz: 2412MHz-2472MHz(CH1-CH13)

2.4GHz: <0.04W(EIRP)

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Motion Detection, Human Detection

Human Tracking

3 customized audios

Built-in MIC, adjustable microphone volume

Built-in Speaker, 68 dBA (Alarm sound at 1 meter), adjustable sound level

Supports up to 256 GB Micro SD card

Support

Dual color (red & blue)
LED indicator

5 V 1A, Type-C Power Plug

Plastic

76.7mm x76.7mm x110.4mm(3'' × 3'' × 4.3'')

84mm x 84mm x 165mm (3.3'' × 3.3'' × 6.5'')

158g(0.34lb)

331g(0.73lb)

Desktop, Ceiling-mounted

CE, FCC, RoHS, UKCA

Operating Temperature: -10°C ~ 45°C (14°F ~ 113°F)
Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)

Operating Humidity: 10% ~ 95% RH (non-condensing)
Storage Humidity: 3% ~ 95% RH (non-condensing)

Camera
Power Adapter (cord length: 1.5m)
Installation Template
Mounting Bracket
Mounting Accessories Kit
Quick Installation Guide
