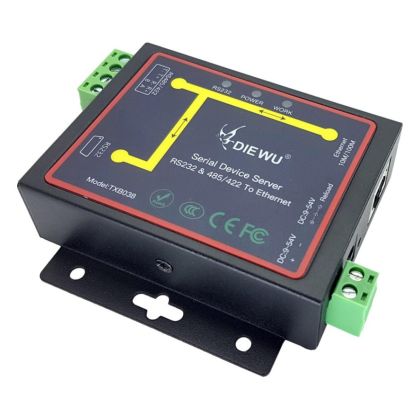

ETHERNET TO RS232/RS485 - TXB038
Ethernet To Serial Device
Product specification
Model Number: TXI038
Chipset: IP210
Port Number: 1 Port 10/100M Auto MDI-MDIX RJ45,1 Port RS232,1port RS485/422
Standard: IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3az
Network Media: 10Base-T,Cat3 or above UTP,10Base-Tx,Cat5 UTP
Data Rate: 10/100M
Forwarding Rate: 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps
LED Indicator: Link/Act, Power, System, TX/RX
Baud Rate: 110bps - 256000bps
Operation Modes: TCP Server, TCP Client, UDP
Dimension: 86 x 84 x 25mm
Power Input: DC9V-54V
Power Consumption: Max1.8W
Environment
Operating Temperature: -10 ?-55 ?
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -40?-85?
Relative Humidity: 5%-90%(non-condensing)
Other function
RS485 Support full Duplex and half Duplex
Build Load Default Key
Device Default Parameters
ID: Admin
Password: System
IP Address: 192.168.2.1
Operation Mode: TCP server
Transmission Mode: RS232
Baud Rate: 57600bps
UART Parameters: 57600,8,N,1
Local Port
TCP:23
UDP:21
Load Default
Power off the Device
Hold the Load Default Button
Power on the Device, hold the Button for 10 seconds, then release Default Button
- Availability: 17 In Stock
- Model: TXB038
- SKU: TXB038
-
